China Scooter 50CC03

Model: China Scooter 50CC03

Approve mode:EEC  EPA  DOT
Product Description:
(1)Overall length:1815mm
(2)Overall width:675mm
(3)Overall height:1035mm
(4)Wheelbase  (mm) 1300
(5)Min ground clearance  (mm) 100
(6)Idle lade  ( kg) 79
(7)Coplete vehicle kerb mass(kg) 85
(8)Type 1P39QMB
(9)Bore×Stroke(mm) 39×41.4
(10)Cylinder work capacity  (ml) 50/150CC
(11)Max power  (kW/r/min) 3.0/7500±500
(12)Demarcate power  (kW/r/min) 2.4/7500±500
(13)Max torque  (N·m/r/min) 2.5/6000±500
(14)Idle speed  (r/min) 1500±100
(15)Min fuel consumption  (g/kW·h) 367
(16)Start method Electric / Kick
(17)Ignition system C.D.I
(18)Carburetor size PD18J
(19)Tank capacity(L) 7.8
(20)Wheel rim(front/rear) 2.50×10  /  2.15×10
(21)Tyre size designation 80/100-10  /  80/100-10
(22)Front/Rear Brake model Disc/Drum
(23)Front/Rear brake type Manual
(24)Spark sizp/gap(mm) A7RTC  /  0.6～0.7
(25)Accumulator 12V5Ah
(26)Head light Double light
(27)Max speed(km/h) 45
(28)N.W: 85
(29)G.W: 105
(30)Whole measure 1700×550×850
(31)Container 20/40/40HQ 26/56/84pcs

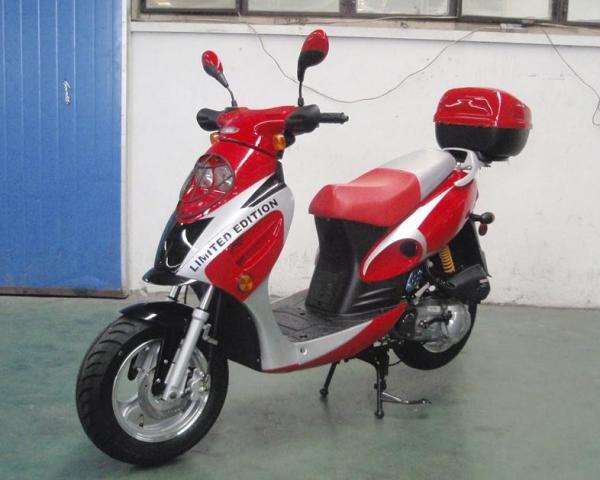

China Scooter 50CC03 Images
