China Go cart500CC01

Model:

China Go cart500CC01

Approve mode:EEC  EPA  DOT
Product Description:
(1)Engine type: 500/800/1100cc,water cooled, 4-stroke,single-cylinder, with inner reverse
(2)P Max.: 24km/6500r/min
(3)T Max.: 38.8N.m/5500r/min
(4)Cylinder bore: 87.5mm
(5)Start mode: electric
(6)Power sourc: Battery 12V18HA
(7)Displacement: 493 ML
(8)Comperession ratio:10:01
(9)Ignition: CDI
Dimension and weight
(1)Wheel base: 2340 mm
(2)Rider: Double
Performance
(1)Top speed: 80km/h
(2)Starting: <15s
(3)Parking trig: mechanical lock
(4)Fuel: RQ-90(leadless)
(5)Lubricate oil brand: SAE15W-40/SF
(6)Gas tank capacity: 16L
(7)Engine oil capacity: 2.2L
(8)Headlight: 12V35W
(9)Tailight: 12V21w/5w
(10)Climb capacity: 18 degree
Chassis
(1)Distance between wheels:(F/R)1,340mm/1,340mm
(2)Seat distance: 450mm
(3)Front brake hydraulic DISC brake by foot control
(4)Rear brake: hydraulic DISC brake by foot control
(5)Tire(F/R): 25X8-12 / 25X10-12
Transmission
(1)Transmission: Shaft (4X4)
(2)Clutch:  AUTO
Available options
(1)Wheel hub: Aluminum
(2)Front /rear tire:road tire, cross-country tire
(3)Rearview mirror: with EC, or without EC
(4)Headlight: Four headlights with EC
Others
(1)Frame: steel tube
(2)Front suspension: double A arm
(3)Rear suspension: swing type
Packing:
Steel frame and carton
Carton dimensions:
3,000mm x1,680 x 880 mm
Container:
4pcs/20”, 12pcs/40”HQ
N.W.: 450kgs

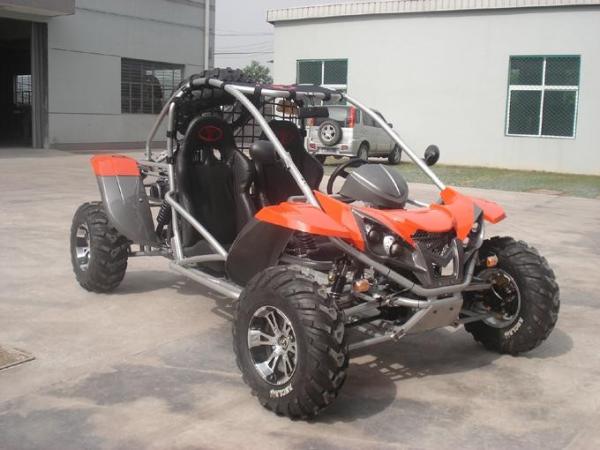

China Go cart500CC01 Images
